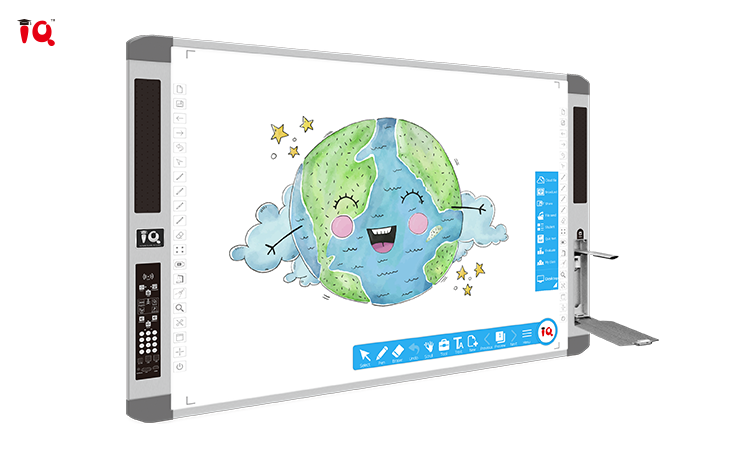

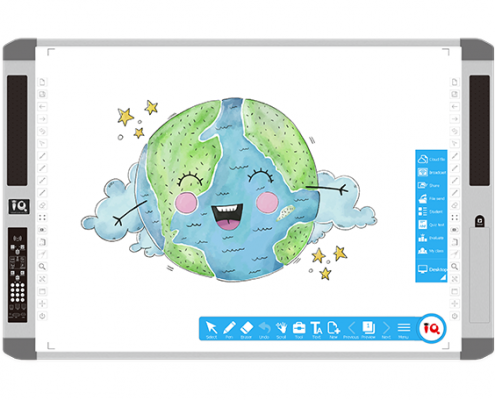

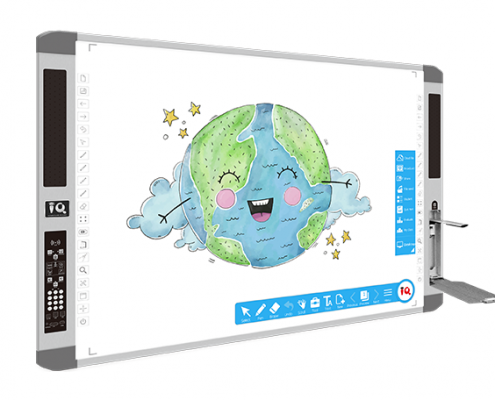

| Model | IQAio GR511-17 | ||
| Size | 91″ | 102″ | 150” |
| Overall Size(mm) | 1981*1302 *76mm | 2308*1302*76 mm | 3602*1302*76mm |
| IWB Size(mm) | 1719*1234 mm(83″) | 2045*1234 mm(94″) | 3339*1234mm(140”) |
| Active Projection Size (mm) | 1632*1224 mm(80″) | 1958*1224 mm(90″) | 3224*1216(137”) |
| Aspect Ratio | 4:3 | 16:10 | 8:3 |
| Device Main Control | i3/i5 Dual Core Processor, 4G RAM, 500G HD with Graphics Card, Gigabite Ethernet | ||

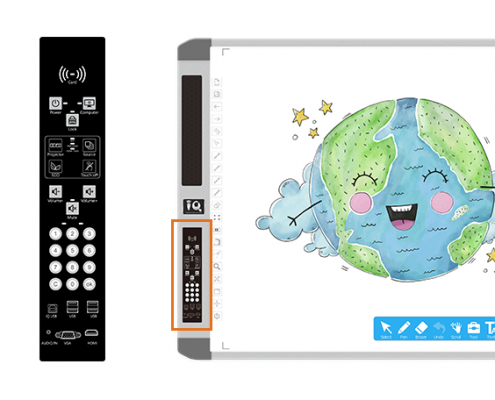

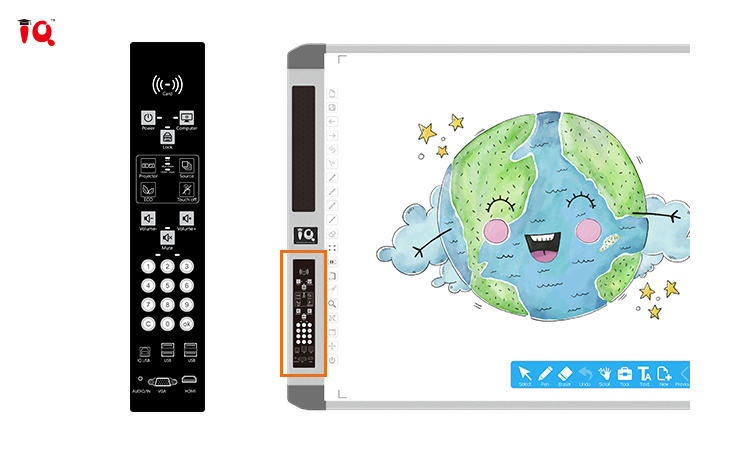

| External Interfaces | USB 2.0*4, External PC USB input*1, Audio 3.5 mm input*1, VGA*1, HDMI*1 | ||
| Back Interfaces | Audio 3.5mm output*1, VGA output*1, HDMI output*1, RS232*1, AC 220V input*1, AC 220V output*2 | ||
| Appearance | Dual-cavity symmetric structure. Aeronautic aluminum frame with no painting, magnetic- interference free and corrosion-resistant material | ||
| Audio Frequency | 2*25 W | ||
| Wireless Mouse and Keyboard | Ultra-thin fashionable wireless 2.4G suite | ||
| Power Supply | AC 220V±10% 50 HZ, Load capacity 220V 5A. | ||

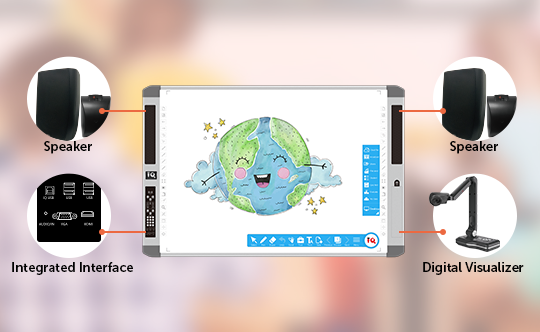

| Optional | PC, document camera, Wireless MIC | ||
| Title | Size | Date added | Download |
|---|---|---|---|
| IQAiO-GR511-Quick Guide 20170415 | 3.43 mb | 30-10-2017 | Download Preview |
| IQAiO-GR511-17--Datasheet-20180605 | 716.46 kb | < td> 23-07-2018Download Preview | |
| IQAiO-GR511-17 Brochure 20170727 | 925.81 kb | 30-10-2017 | Download Preview |
